Overview
Little-JIL is a maturing process programming language. Processes are
written in a simple visual syntax. While the editor enforces proper syntax,
there are a number of semantic requirements that are not guaranteed. The
semantic checker described here checks a Little-JIL process against rules
expressed in first-order logic, and provides feedback to the programmer
identifying error conditions and providing useful warnings. The checker
applies xlinkit, a consistency checking tool for XML documents, along with a
growing set of custom rules, to check Little-JIL processes represented in an
XML notation. Incorporating over a dozen rules and a visual reporting tool,
the Little-JIL semantic checker provides clear and valuable information
ranging from common errors to detection of complicated data flow anomalies.
The Project
 |

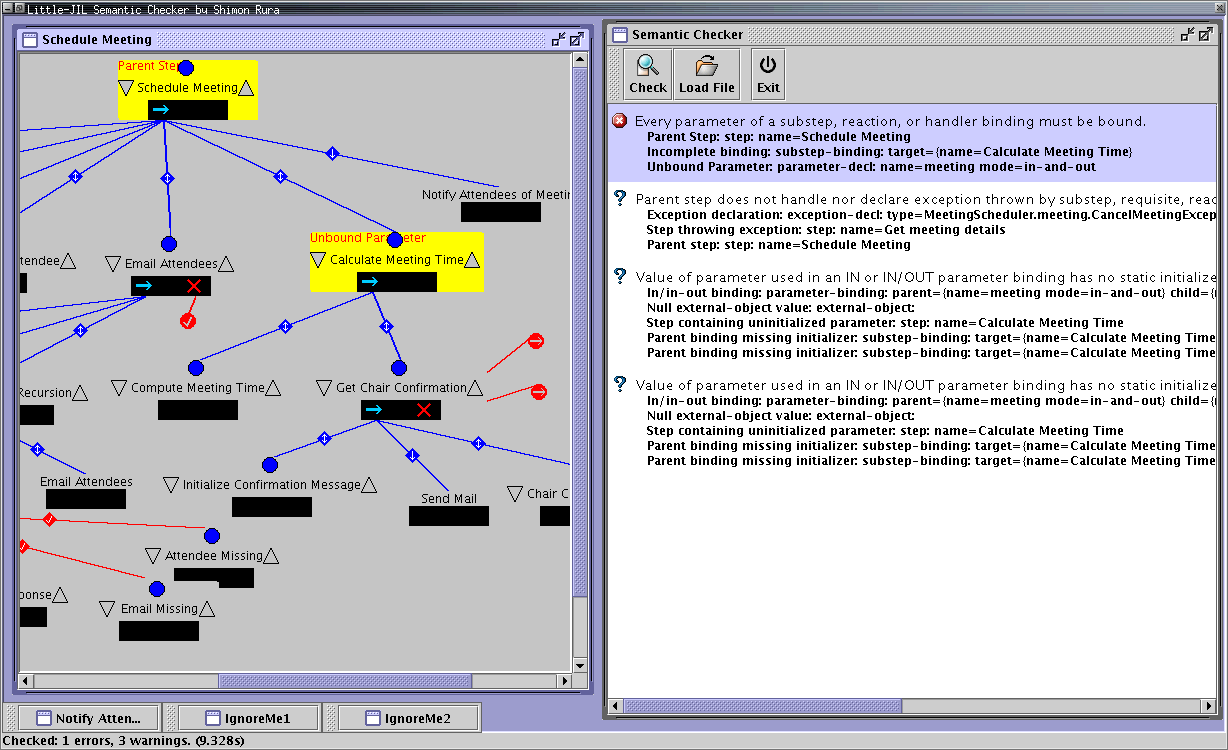

Checker UI Screenshot |
The work available here was developed during the summer of 2002 at the
Williams College Computer Science Department by Shimon Rura under the direction of Prof. Barbara
Lerner. A poster describing this work has been accepted to
ICSE 2003. A paper
describing this work has been submitted to EWSPT 2003.
Features of the Little-JIL semantic checker:
- Little-JIL semantic rules are encoded
in first-order logic (using xlinkit syntax)
- the checker runs as a standalone tool that reads a Little-JIL
process from a file and invokes xlinkit and XML tools to carry out
semantic checking and message reporting
- a graphical user-interface for the checker shows detailed
error/warning messages and highlights relevant parts of the process
diagram
An additional by-product of the development is Rule2Latex, an
xlinkit-rule to LaTeX pretty-printer, making the first-order logic rules
easier to read [example].
Little-JIL is being developed collaboratively with researchers in the
LASER research lab at the University of Massachusetts.
